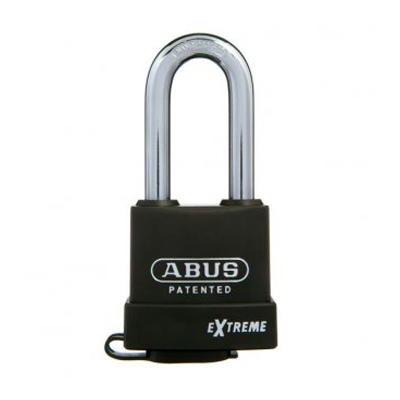

ABUS Padlock 83WP/63HB/63 KD DP Series “Z” Version


  a     Body width   65mm
  b     Horizontal shackle clearance     25mm
  c     Vertical shackle clearance   63mm
  d     Shackle diametre   11mm


The ABUS 83WP Series padlocks are weather protected, steel bodied padlocks with a plastic cover. It differs from similar styled weather protected padlocks in that the body is solid steel, not laminated steel.

The plastic cover is manufactured using a dual injection process that results in a rubber-like material around the shackle opening, while retaining heavy duty durability around the rest of the padlock. This assists in preventing the cover from splitting.


  • Keyed to differ.
  • 65 mm solid steel lock body with Nano-Protect™ plating.
  • Double ball locking.
  • Special alloy steel shackle with Nano-Protect™ plating.
  • 63 mm shackle as standard.
  • Full dual injected plastic jacket.
  • Removable cylinder assembly for quick rekeying.
  • Incorporates the popular 570 6 pin style barrel.
  • Compatible with most restricted keying profiles.
  • Silca LW4 keyway.
  • Quick change shackle feature.
  • Easily converted from snap shut to key captive function.
  • Range of replacement shackles.
  • Supplied display packed.
