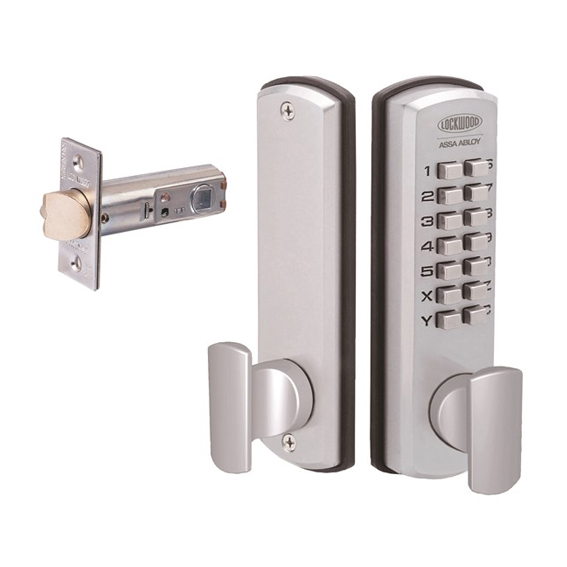

Lockwood 530 DX Digital Deadlatch SC



  • Door thickness: 35 to 45mm.
  • Backset: 60mm; 70 and 127mm latches available separately on application (Options: Also available in double keypad version, which provides a keypad on each side of the door.)
  • Standard finishes: Satin Chrome Pearl SP
  • Fire rating: Lockwood 530 Digital DX Entrance Set (excluding rubber gasket) has been successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS 1905.1: 1997, Fire Resistant Doorsets.

The Lockwood Digital DX Locksets provide a mechanical method of keyless entry.

For extra security when under forced attack, the inbuilt clutching mechanism allows the outside knob to rotate without operating or damaging the lock.

The factory set 5 digit code is easily changed to any 4, 5 or 6 digit code using the code changing kit provided with each lock.

Lockwood Digital DX Locksets are designed to control access into commercial areas, especially when frequent combination changes are needed to maintain security.

As the digital lockset utilizes mechanical operation, electrical wiring is not required. Selected locksets combined with digital access pads provide keyless entry.


  • Outside
    Press the C button, enter the correct code, then turn the knob to unlock the door. Upon releasing the turn knob the code is automatically cancelled.
  • Inside
    Opened by knob at all times.

Other Mechanical Keyless Locks Available
