Kaba E-Plex 2000 Cylindrical Lock 70mm Latch

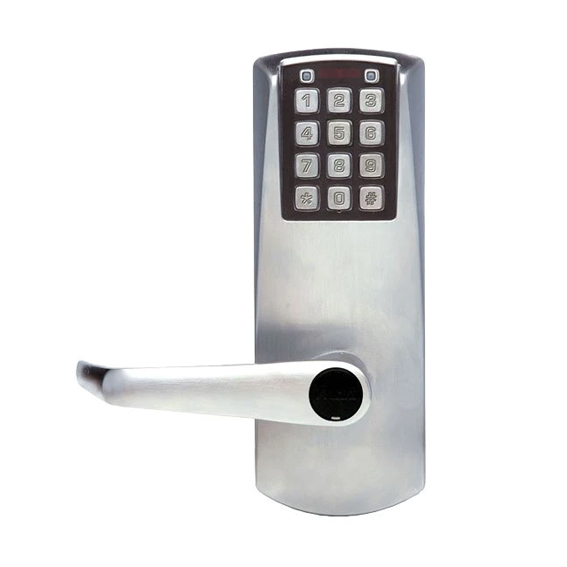

The E-Plex 2000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 access codes and is programmed via the keypad or with optional Microsoft Excel-based software.



  • No Wires: Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks
  • Locking Device Options:
    Cylindrical – Cylindrical latch with 3-hour UL/ULC fire rating
    Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and mounting hardware not included)
    American Standard Mortise: With 32 mm face plate; with and without deadbolt, auto deadbolt also available
  • Number of Codes: Multiple Users—100 Codes
  • Handing: Non-handed; pre-assembled for left-hand door installations—easily changed in the field
  • Audit Trail: The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.
  • Programming: Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software
  • Key Override (Optional): Optional Key-in-Lever cylinder in Schlage “C” Keyway with black cap
    Small format—Best and equivalent (6 or 7-pin length)
  • Operation Modes: PIN access. Passage can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
  • Authority Levels: Five different levels allow who has access to specific lock functions, including:
  • Master Level: performs all set-up and programming functions
  • Manager Level: administers common programming functions
  • Access User Level: entry granted with valid PIN
  • Service Level: codes for single event or single day access, programmable in advance
  • Maintenance Level: no access is granted, information can be uploaded/downloaded to/from the lock
  • User Parameters:
    User Parameters: Code length—adjustable to accept 4 to 8 digits
    Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
    Re-lock time—adjustable from 2 to 20 seconds
  • Exit Device Compatibility: Find a list of compatible exit devices in the Electronic Lock price book
